TEKTRONIX

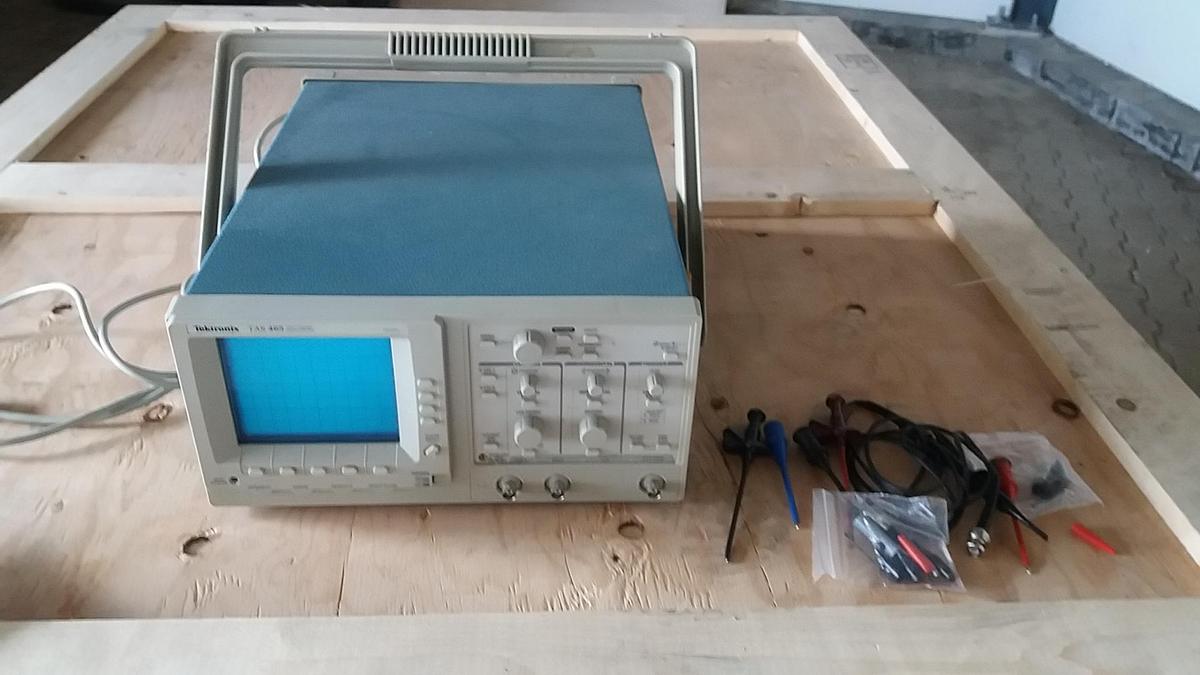

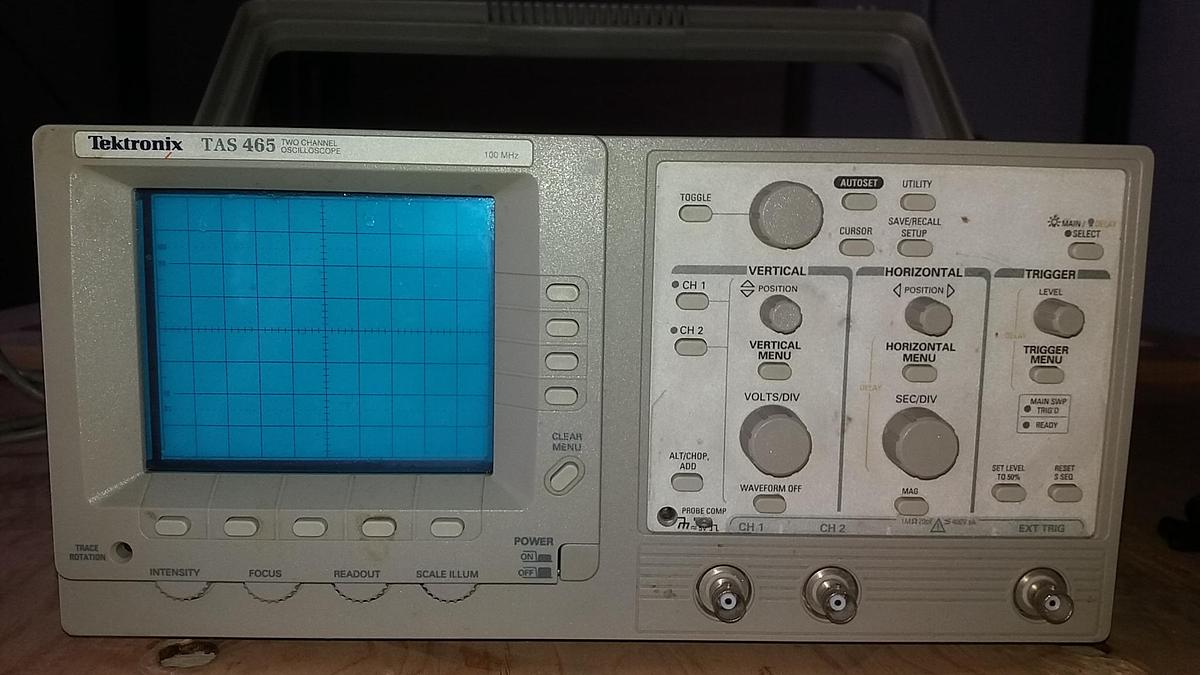

The Tektronix TAS 465 is a professional, two-channel analog oscilloscope with a 100 MHz bandwidth. Introduced in the 1990s as a modern successor to the legendary 465 series, it combines real-time analog signal tracing with digital control and automated features.

Key Technical Specifications

• Bandwidth: DC to 100 MHz.
• Channels: 2 input channels.
• Rise Time: ≤ 3.5 ns.
• Vertical Sensitivity: From 2 mV/div to 5 V/div (fully adjustable).
• Dual Time Base: Features a delayed sweep option for expanding and inspecting specific parts of a waveform.
• Gain Accuracy: Within ±2.5%.

Features and Functions

• AUTOSET: A one-touch button that automatically adjusts vertical, horizontal, and trigger controls for a stable display.
• On-Screen Readout (CRT Readout): Digitally displays current settings (V/div, s/div) and measurement data directly on the CRT screen.
• Measurement Cursors: Built-in cursors allow for direct digital readouts of voltage (Δ V), time (Δ t), and frequency (1/Δ t).
• Setup Memory (Store/Recall): Allows users to save and quickly recall up to 4 complete front-panel configurations.
• Video Triggering: Dedicated trigger modes for TV Line and TV Field, ideal for servicing video and television equipment.

Common Applications

• Electronic repair shops and calibration laboratories.
• Industrial maintenance and field service operations.
• Technical schools, universities, and engineering education.
• Quality control and manufacturing testing.
